Solar-powered automatic gate opener system designed for residential and commercial gate control. Operates smoothly with gentle start and stop features, compatible with steel, wood, vinyl and chain-link gates up to 600kg and 6 metres in length.
- Solar-powered with backup battery system (2 x 12V 12Ah spare batteries)
- Gentle start and stop operation to extend gate lifespan
- Midway mode allows gate to pause at predetermined position
- Automatic obstruction detection with reverse function
- Emergency release key for power failure situations
- Programmable auto-close feature (0-99 seconds adjustable)
- Weather and dust resistant control box (IP44 protection)
- 3 programmable remote controls included with 30m operating range
- Suitable for panel, tube and chain-link gate styles
- Power source: 24V DC solar-powered with 20W solar panel
- Motor power: 180W
- Maximum gate weight: 600kg
- Maximum gate length: 6m
- Gate moving speed: approx. 12.6m/min
- Operating temperature: -22°C to +55°C
- Control box dimensions: approx. 29cm x 29cm x 15cm
- Remote control range: 30m
- Assembly required
- Colour: Black

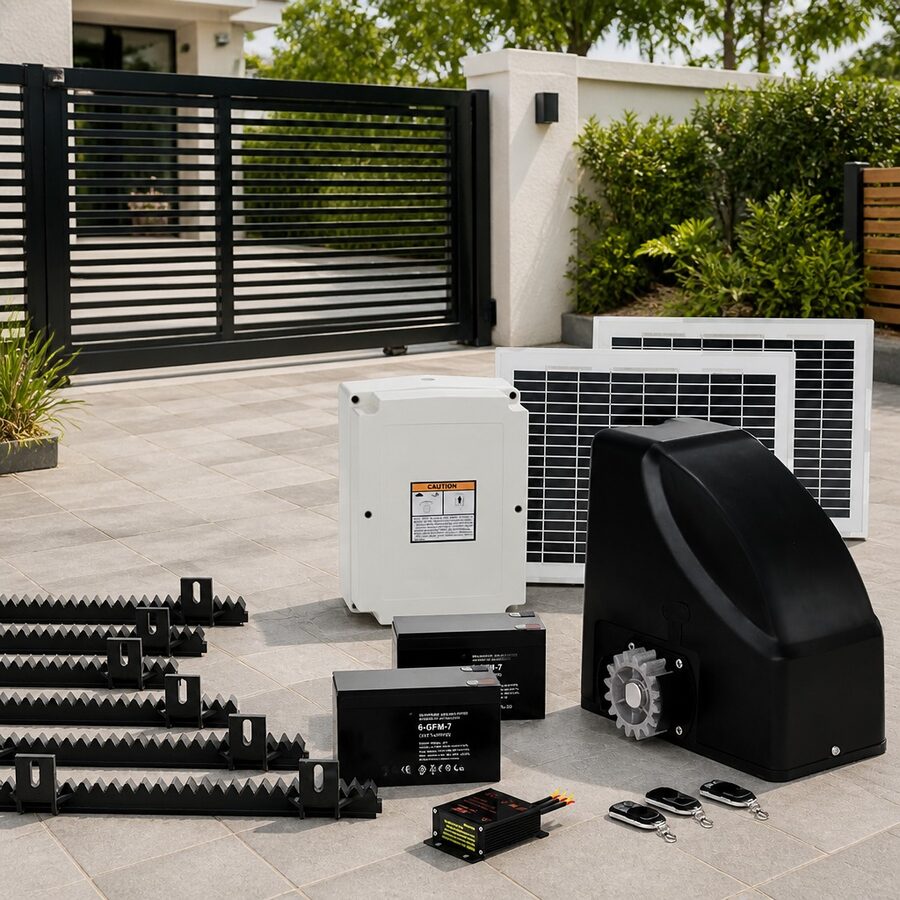

- Gate Opener Unit x 1
- 1M Rail x 6
- Remote Control x 3
- 20W Solar Panel x 1
- Installation Accessories set x 1
- User Manual x 1
Note: It is recommended to connect this model to mains power with the 20W solar kit acting as backup. The 24V system includes 2 spare batteries for emergency use. Assembly is required for installation.
