Solar-powered automatic gate opener system designed for residential and commercial gate control. Operates on 24V DC with a 40W solar panel and dual 12V 20Ah backup batteries. Features gentle start and stop operation, midway pause positioning, and automatic obstruction detection with reversal function. Includes programmable emergency auto-close (0-99 seconds adjustable) and emergency manual release key for power failures.
- Handles gates up to 600kg weight and 6m length
- Gate opening speed: approx. 12.6m/min
- Gentle start and stop features to extend gate lifespan
- Midway mode allows gate to pause at predetermined position
- Automatic reverse upon obstruction detection
- Weather and dust resistant control box (IP44 rated)
- Programmable auto-close feature (0-99 seconds)
- Includes 3 remote controls with 30m operating range
- Compatible with steel, wood, vinyl and chain-link gates
- Power source: 24V DC solar-powered with 2 x 12V 20Ah spare batteries
- Solar panel: 24V / 40W
- Motor power: 180W
- Max gate weight: 600kg
- Max gate length: 6m
- Operating temperature range: -22°C to +55°C
- Protection class: IP44
- Remote control type: Alkaline zinc manganese battery 12V 27A
- Remote operating range: 30m
- Control box dimensions: approx. 29cm x 29cm x 15cm
- Colour: Black
- Assembly required: Yes

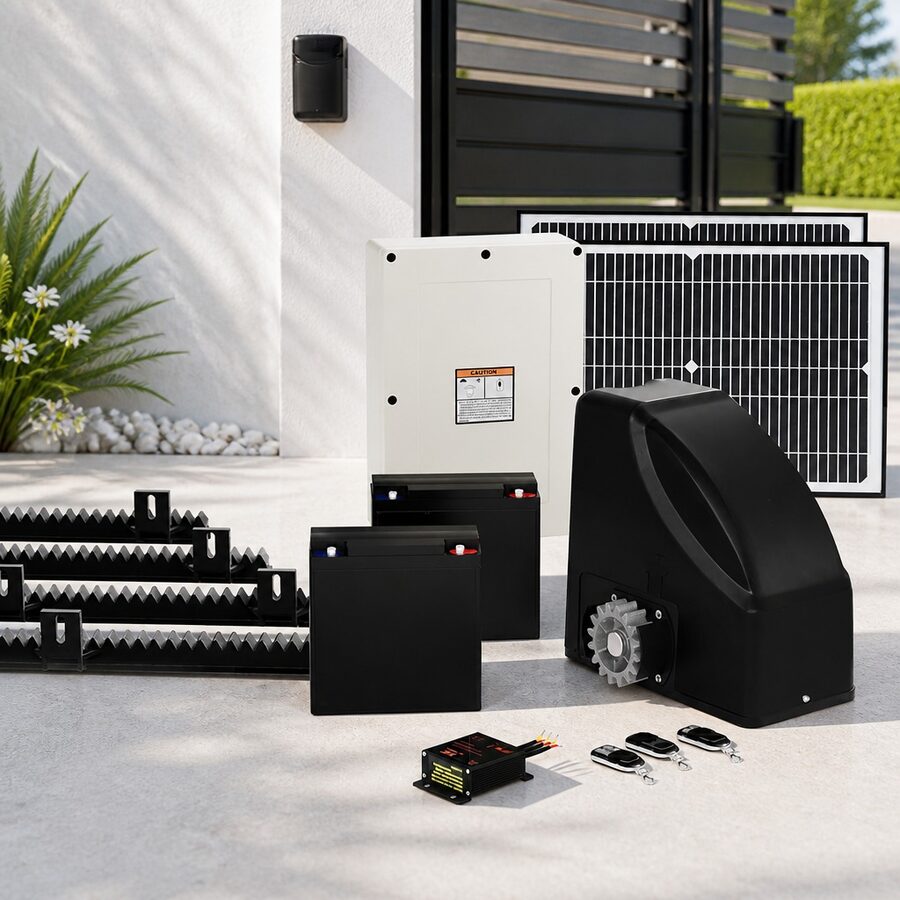

- Gate Opener x 1
- 1M Rail x 4
- Remote Control x 3
- 40W Solar Panel x 1
- Installation Accessories x 1 set
- User Manual x 1 set
