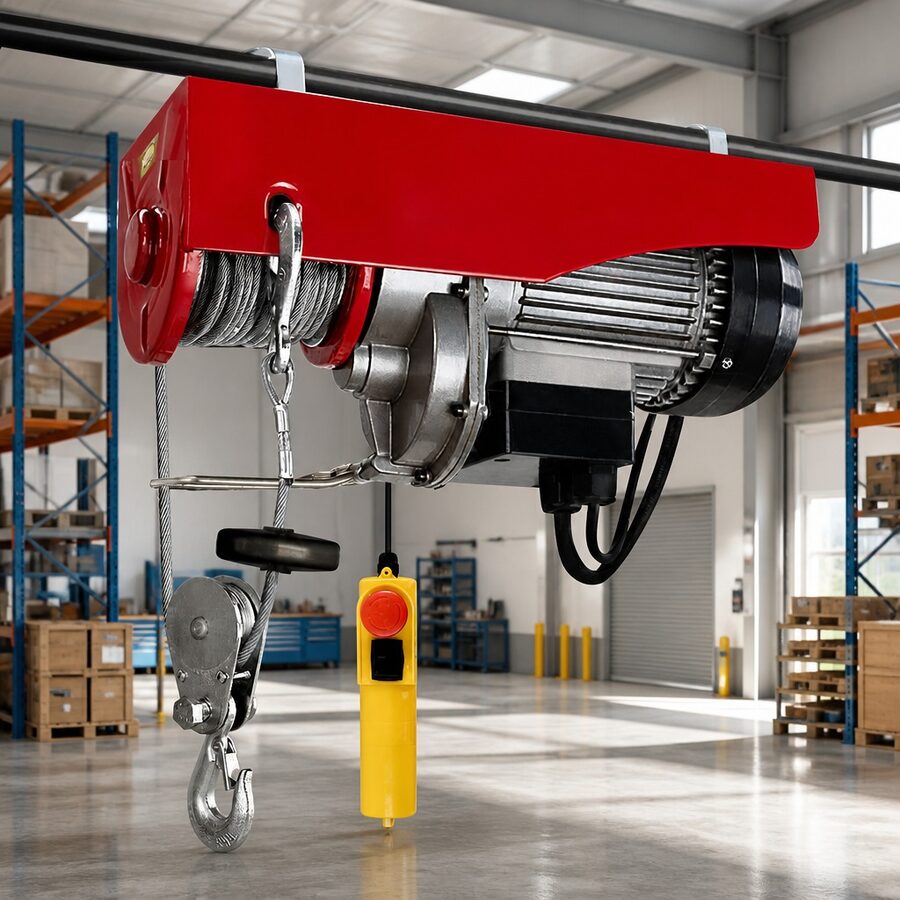

Electric hoist winch designed for garages, warehouses and heavy load lifting applications. Features powered motor with emergency stop functionality and wire rope lifting system suitable for both single and double rope configurations.
- Lateral-Magnetic Single-Phase Capacitance Motor
- Emergency Instant Stop Switch
- 7×19 Robust Wire Rope Structure
- Single and Double Rope Lifting Modes
- Overload Protection Function
- Remote Control Operation
- Voltage: AC 240V/50Hz
- Input Power: 1300W
- Single Rope Capacity: 400kg
- Double Rope Capacity: 800kg
- Rope Type: 7×19 Structure Wire Rope
- Rope Diameter: 5.1mm
- Lifting Speed (Single Rope): 10 metres/min
- Lifting Speed (Double Rope): 5 metres/min
- Lifting Height (Single Rope): 18m
- Lifting Height (Double Rope): 7.5m
- Weight: approx. 18.5kg
- Power Cable Length: 0.8m
- Control Switch Cable Length: 1.8m
- Colour: Red
- 1 x Electric Hoist
- 1 x User Manual
