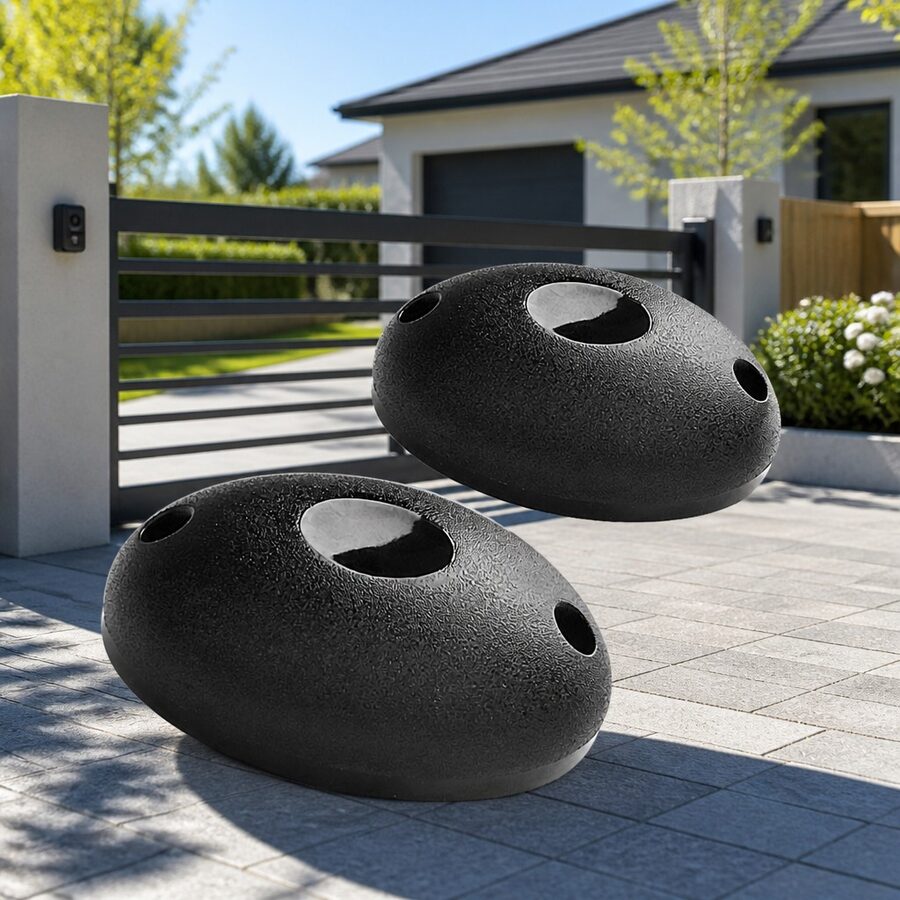

Infrared Photocell Swing Sliding Gate Door Sensor Security Beam Detector 20M

Infrared photocell sensor designed for automated swing and sliding gate systems. Helps prevent accidental gate closure and protects vehicles and people by detecting obstacles within the detection range.

• Hard frosted photocell design for rough weather conditions
• Infrared technology with automatic beam detection
• Detection range up to 20M (range may reduce by 30% in poor weather)
• Operating temperature range -20°C to +70°C
• Power supply 12-24 DC/AC
• Relay output 1A max 30V
• Assembly required

• Technology: Infrared Photocell
• Receiver range: ≤20m
• Frequency: 1.92KHz
• Wavelength: 940mm
• Input: RX 15mA-TX 30mA
• Angle: ＜±10°
• Working temperature: -20°C to +70°C
• Product weight: approx. 0.2kg
• Product dimensions: approx. 7.5 x 4.9 x 3cm
• Color: White

• Infrared photocell x2
• User Manual x1
