Solar-powered gate opener system designed for automatic single swing gate control. This system delivers smooth operation with gentle start and stop features, protecting your gate mechanism. Safety features include automatic obstruction detection that stops or reverses the gate, plus an emergency release key for power outages. Programmable auto-close function (0-99 seconds adjustable) and included remote controls provide convenient access control.
- Solar-powered with dual backup batteries (12V 12Ah)
- Handles gates up to 500kg and 5.5m in length
- Push-to-open bracket for outward-opening gates
- Gentle start and stop technology
- Automatic obstruction detection and reversal
- Emergency release key for power failures
- Programmable auto-close timer (0-99 seconds)
- Weather and dust resistant control box (IP44 protection)
- Two programmable remote controls included
- Works with steel, wood, vinyl gates in panel, tube, and chain-link styles
- Power Source: Solar with 2×12V 12Ah backup batteries
- Solar Panel: 24V / 20W
- Motor: 24V DC, 80W
- Max Gate Weight: 500kg
- Max Gate Length: 5.5m
- Actuator Speed: 20mm/s
- Actuator Travel: 385mm
- Operating Temperature: -22°C to +55°C
- Protection Class: IP44
- Remote Operating Range: 30m
- Remote Control Battery: 12V 27A alkaline zinc manganese
- Assembly Required: Yes
- Available Colours: Black, White

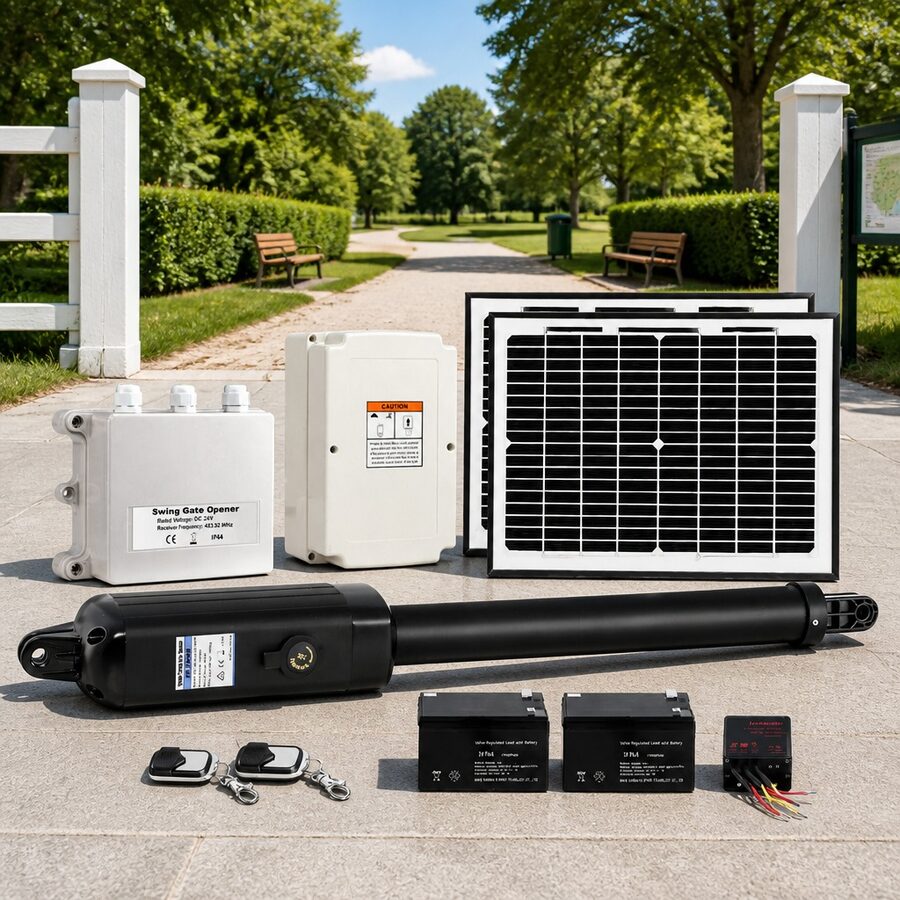

- Gate Opener Arm ×1
- Remote Control ×2
- Control Box ×1
- Solar Panel 20W ×1
- Installation Accessories ×1
- User Manual ×1
