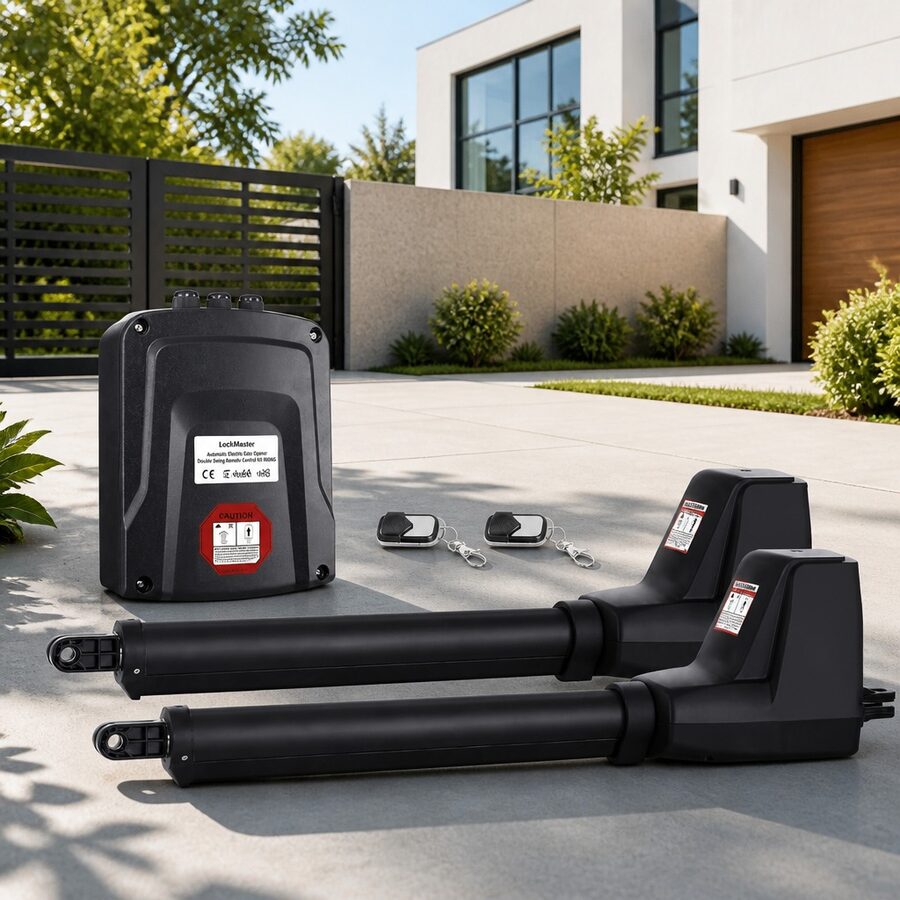

An electric gate opener system designed for smooth, effortless operation of double swing gates. Features gentle start and stop functions, automatic obstruction detection with reverse capability, and programmable auto-close timing. Includes dual remote controls and emergency manual release for power outages.
- Handles gate weight up to 800kg and gate length up to 11m
- Gentle start and stop features extend gate lifespan
- Automatically stops or reverses upon obstruction detection
- Programmable auto-close function (0-99 seconds adjustable)
- Weather and dust resistant control box (IP44)
- Emergency release key for manual operation during power failure
- Dual programmable remote controls with 30m operating range
- Suitable for steel, wood, vinyl gates in panel, tube, or chain-link styles
- Motor: 24V DC, 50W per arm
- Maximum gate weight: 800kg
- Maximum gate length: 11m
- Actuator speed: 16mm/s
- Actuator travel: 385mm
- Operating temperature: -22°C to +55°C
- Protection class: IP44
- Remote control battery: Alkaline zinc manganese 12V 27A
- Colour: Black
- Assembly required: Yes
- Gate opener arms x 2
- Remote controls x 2
- Control box x 1
- Installation accessories x 1
- User manual x 1
