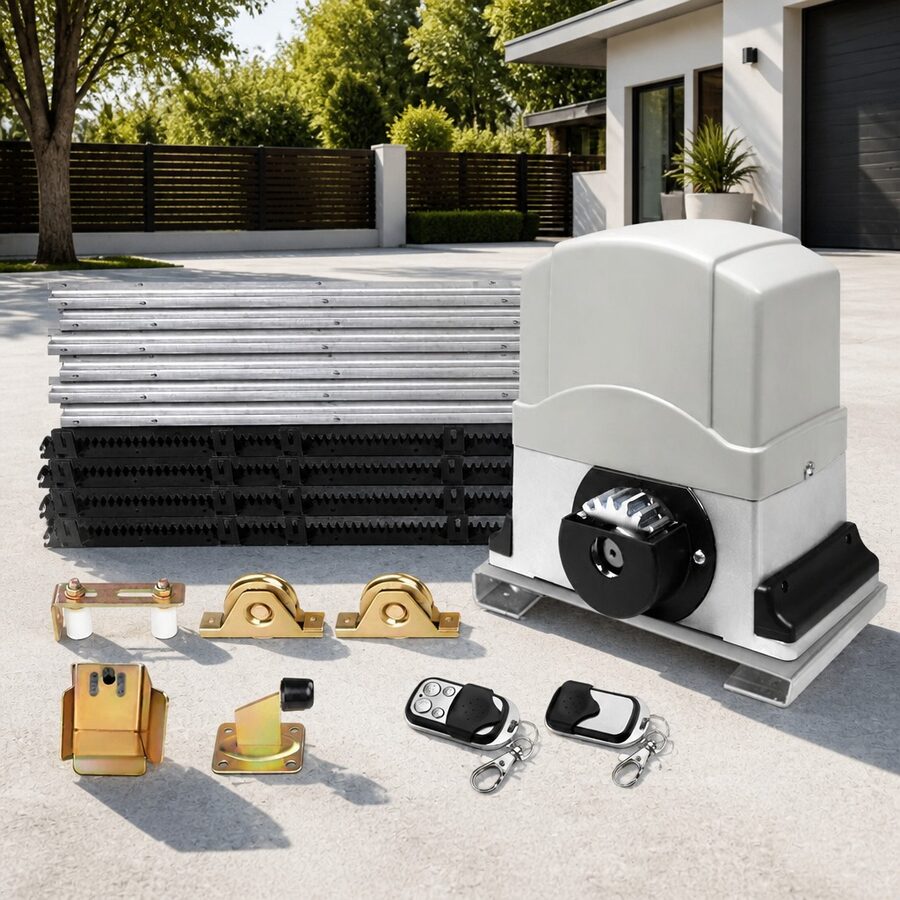

Automatic sliding gate hardware kit with 450W motor for residential and DIY installation. Complete system designed to automate existing sliding gates or new installations with wireless remote operation and adjustable auto-close functionality.
- 450W motor with max. weight capacity of 1800kg; recommended for gates up to 1200kg
- Smooth and ultra-quiet opening and closing operation
- Includes 2 wireless remote controls with reliable rolling code technology
- Built-in adjustable auto-close system with pedestrian and midway modes
- Emergency manual release key for safety
- Built-in motor running limitation and electromagnetism limit for easy adjustment
- Quick selection for open/close direction
- Adjustable screw thread flute to accommodate different door thickness
- Suitable for maintaining existing sliding gates or new installations
- Ideal for home DIY projects and renovations
- Motor: 230V AC
- Power: 450W
- Material: Galvanised steel
- Max. weight capacity: 1800kg
- Recommended gate capacity: 1200kg
- Gate moving speed: approx. 12m/min
- Max. pulling force: 160N
- Max. torque: 28Nm
- Protection class: IP44
- Rail dimension: approx. 4 x 1m (4 pieces)
- Unit dimension: approx. 29 x 29 x 15cm
- Remote control battery: Alkaline zinc manganese battery 12V 27A
- Assembly required
- Colour: White
- 450W Motor x1
- 1M Rail x4
- Remote Control x2
- Standard Accessories x1 Set
- User Manual x1
- Gate Stopper x1
- 1M U Groove Galvanised Ground Track x6
- Upper Guide Bracket with 2 Nylon Rollers x1
- 90mm U Groove Bearing Wheels x2
- Gate End Stop/Catcher (93mm Opening) x1
